Automatic dishcloth cutting machine

Automatic dishcloth cutting machine


DG SOUTH NEKON CO., LTD was founded in 1997, located in the beautiful Shipai Town in Dongguan City, Guangdong Province. South Nekon is a high technical private enterprise owing independent import-export operation rights. Since the establishment, the company has been devoted to optimization and integration of developing, producing, selling, and applicating of technology of ultrasonic machinery (Ultrasonic rhinestone fixing machine,face mask making machine, ultrasonic ribbon cutting machine, ultrasonic lace sewing machine, ultrasonic plastic welding machines, high frequency fusing machine). more than 10 years of experience in automation technology,South Nekon can provide full automation non-standard fabric sewing and cutting equipment according to the specail request. The company established its own brand “nekon”, and the registered trademark is "nekon", we have more than 200 workers(more than 80 technicians and managers with college education). And the head company has an area of more than 10,000 ㎡with branch company around the main cities of China such as Wenzhou, Kunshan, Ningbo, Fujian, Zhongshan, Guangzhou, Foshan etc.
Model No:NK-XWB1542

Size:3000*900*1900mm

Voltage:220V

Capacity:15-30pcs/min

Power:4200W

Air Pressure:4-6kg/cm2

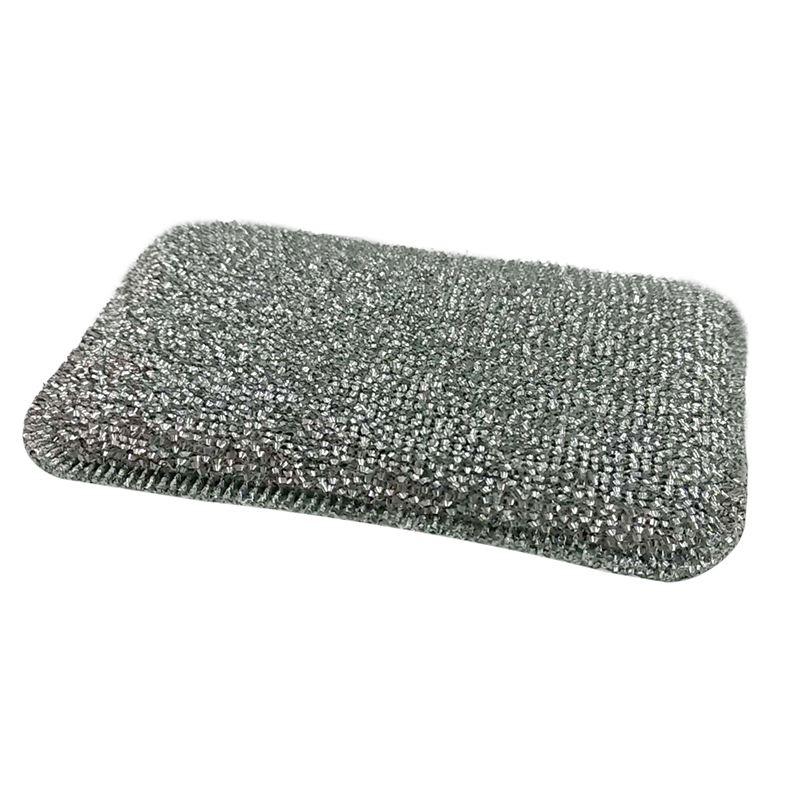

  The full-automatic washing cloth punching and cutting machine uses NTK transducer and uses non-woven fabric, meltblown cloth and other raw materials to produce filter cotton of various shapes and sizes by using the pressing and cutting function of ultrasonic waves, which can be completed at one time from multiple processes such as feeding, trimming, welding and the like, and can save 2 - 4 labor compared with the traditional process.

Product features:

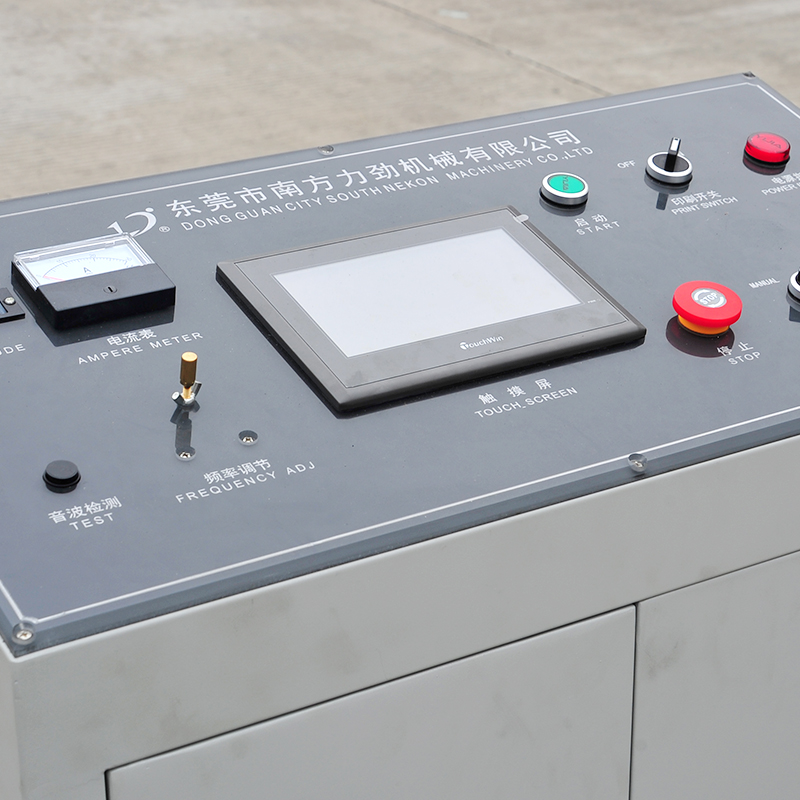

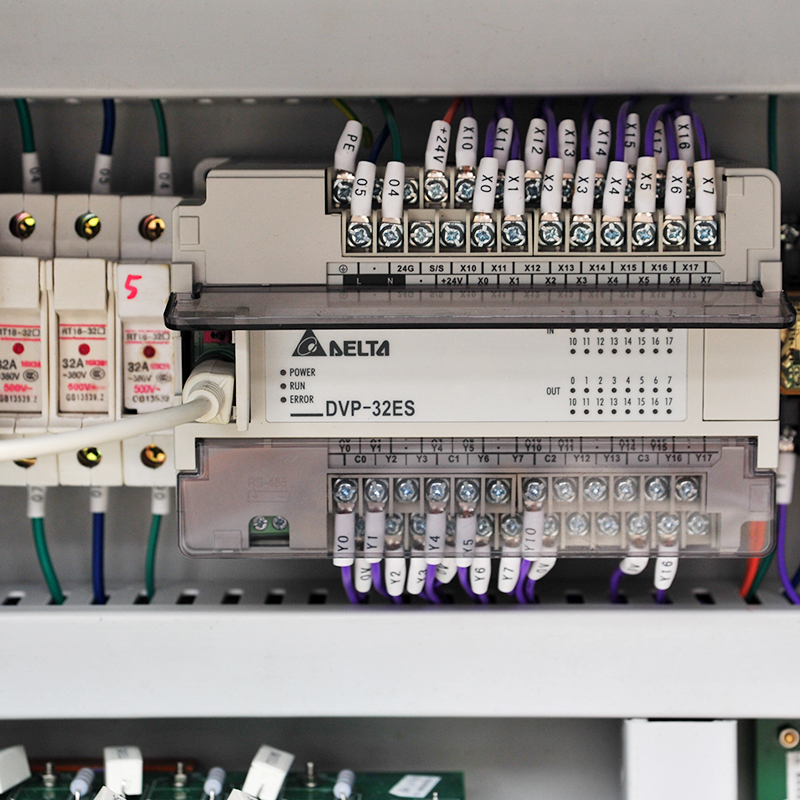

1. The operation panel is clear, PLC program control, easy to operate, easy to learn and understand;  2. Using NTK transducer, the output is strong, stable and durable;

3. The ultrasonic steel mould is imported from Taiwan with beautiful appearance, high hardness and no easy abrasion.

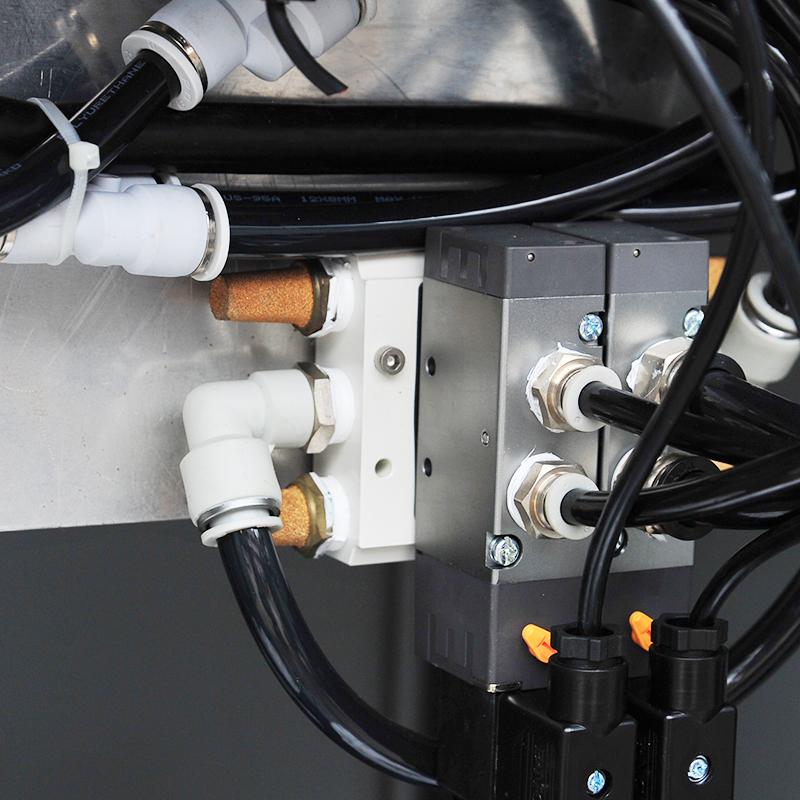

4. The feeding system adopts cylinder belt material, with accurate feeding, small error and no material deformation.



Product features:

1. Design a multi-layer feeding rack to ensure smooth and tidy feeding;

2. Pulling the barrel into the material, positioning is more accurate, the width of raw materials can be controlled to a minimum, and the cost can be saved;

3. The length and size of the finished product are controlled uniformly with a deviation of plus or MINUS 1 mm, which can effectively control the length of the finished product, so that the slicing can not only meet the requirements of production technology, but also eliminate waste.

4, independent material rack, convenient to take and place and adjust raw materials;

5. The degree of automation of equipment is high, and the requirements for operators are low, so that raw materials can be taken and put and finished products can be finished.

6. Automatic counting can effectively control production efficiency and production progress.  7. The rotary control box can adjust the direction of the control box according to the customer's requirements.

8. Automatic molding, discharging and collecting of waste materials, so as to achieve automatic exit of waste materials and reduce the number of employees;

9. The whole feeding rack adopts an all-aluminum alloy rack, which has a light and beautiful appearance and does not rust, making people shine at the moment.

10. This machine adopts ultrasonic Taiwan system, Japanese transducer, stable performance and convenient operation.  11. The automatic ultrasonic welding wheel is made of imported high-quality steel DC53, thus prolonging the service life of the mold and making it wear-resistant and durable.

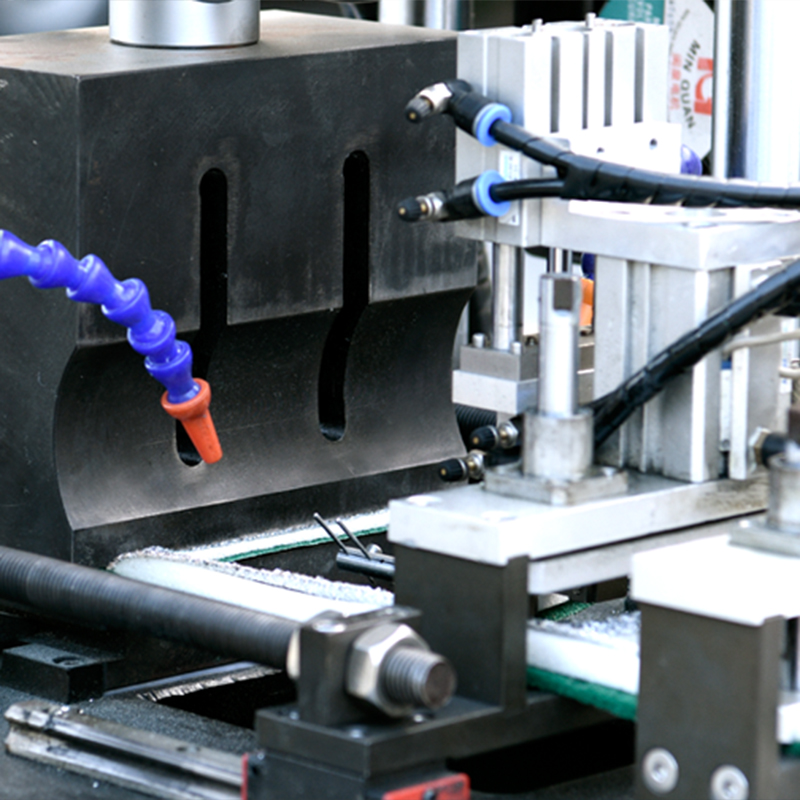

12. The ultrasonic die is made of Cr12MoV material, which has better hardness than common die materials, is suitable for long-time wave generation and is not easy to crack and deform.


The above parameters and configuration is for reference only, specific configuration by mutual agreement shall prevail
