35KHZ ultrasonic welding machine(NK-SS3512)

35KHZ ultrasonic welding machine(NK-SS3512)


Feature:
1. The servo control system controls the welding head to move up and down quickly, and the noise is small. The falling speed and the rising speed can be set according to the welding effect of the product.
2. The standby position of the machine head can be set according to the height of the product and the height of the mold.
3. Depth + torque mode, which can set the welding depth and torque according to the welding effect of welding products.

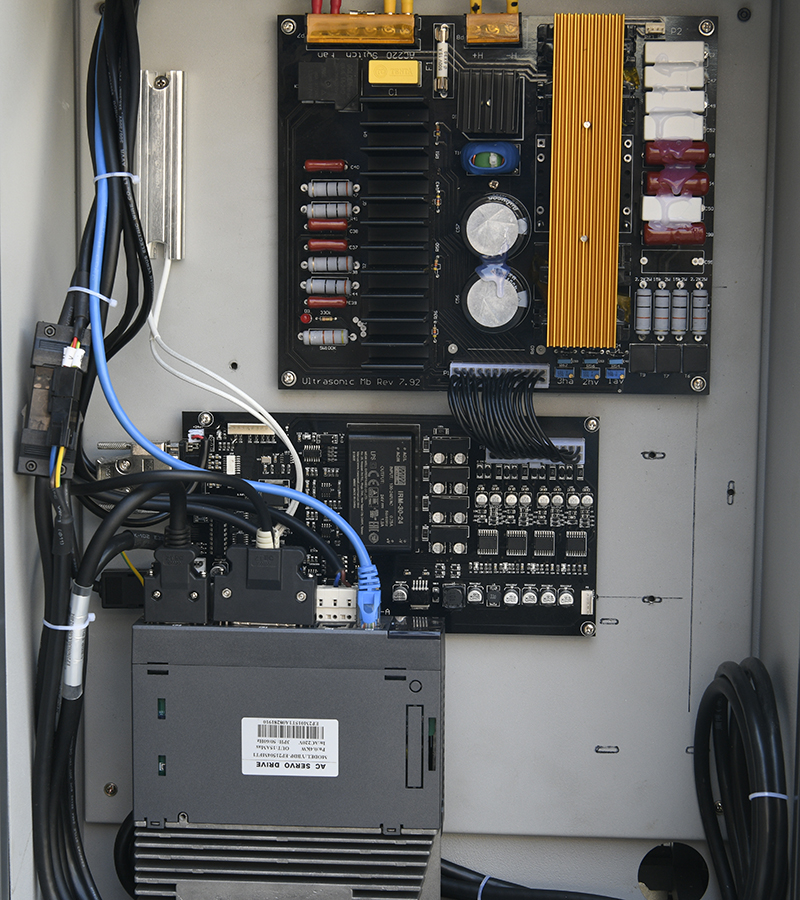

4. It adopts automatic frequency chasing electric box, which has the characteristics of good stability, strong output and wide frequency range.DG SOUTH NEKON CO., LTD was founded in 1997, located in the beautiful Shipai Town in Dongguan City, Guangdong Province. South Nekon is a high technical private enterprise owing independent import-export operation rights. Since the establishment, the company has been devoted to optimization and integration of developing, producing, selling, and applicating of technology of ultrasonic machinery (Ultrasonic rhinestone fixing machine,face mask making machine, ultrasonic ribbon cutting machine, ultrasonic lace sewing machine, ultrasonic plastic welding machines, high frequency fusing machine). more than 10 years of experience in automation technology,South Nekon can provide full automation non-standard fabric sewing and cutting equipment according to the specail request. The company established its own brand “nekon”, and the registered trademark is "nekon", we have more than 200 workers(more than 80 technicians and managers with college education). And the head company has an area of more than 10,000 ㎡with branch company around the main cities of China such as Wenzhou, Kunshan, Ningbo, Fujian, Zhongshan, Guangzhou, Foshan etc.

 Model

 NK-SS3512

 Driving Motion

 Servo Motor

 Supply Voltage

 220VAC,50/60HZ,1Phase

 Power

 1200W

 Control Panel

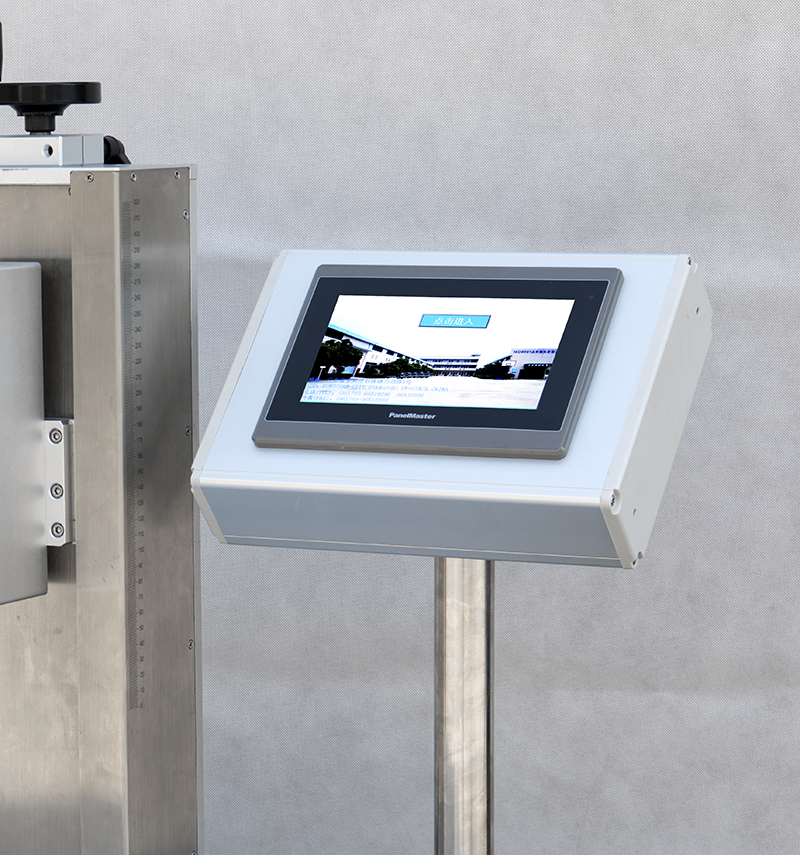

 Human-computer interface(Touch screen)

 Ultrasonic Frequency

 35KHz

 Ultrasonic Mode

 Automatic adjusting

 Dimensions

 700*700*1400MM

 Net Weight

 160Kg


The above parameters and configuration is for reference only, specific configuration by mutual agreement shall prevail
