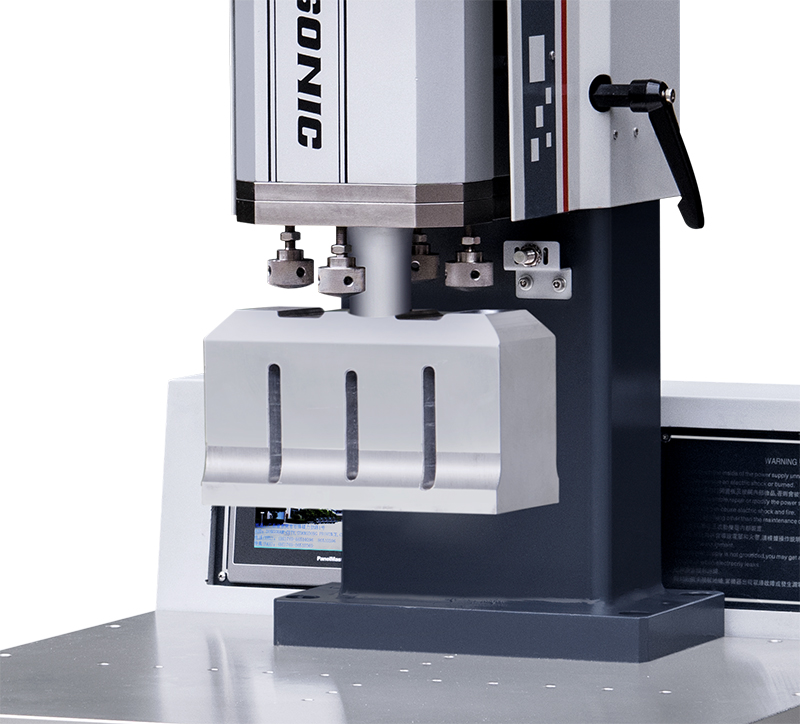

Ultrasonic plastic welding machines(NK-S1560)

Ultrasonic plastic welding machines(NK-S1560)

DG SOUTH NEKON CO., LTD was founded in 1997, located in the beautiful Shipai Town in Dongguan City, Guangdong Province. South Nekon is a high technical private enterprise owing independent import-export operation rights. Since the establishment, the company has been devoted to optimization and integration of developing, producing, selling, and applicating of technology of ultrasonic machinery (Ultrasonic rhinestone fixing machine,face mask making machine, ultrasonic ribbon cutting machine, ultrasonic lace sewing machine, ultrasonic plastic welding machines, high frequency fusing machine). more than 10 years of experience in automation technology,South Nekon can provide full automation non-standard fabric sewing and cutting equipment according to the specail request. The company established its own brand “nekon”, and the registered trademark is "nekon", we have more than 200 workers(more than 80 technicians and managers with college education). And the head company has an area of more than 10,000 ㎡with branch company around the main cities of China such as Wenzhou, Kunshan, Ningbo, Fujian, Zhongshan, Guangzhou, Foshan etc.

 Model

 NK-S1560

 Driving Motion

 Compressed air

 Control Panel

 Human-computer interface(Touch screen)

 Supply Voltage

 220VAC,50/60HZ,1Phase

 Power

 6.5KW

 Air Pressure

 0.4-0.6Mpa

 Ultrasonic Frequency

 15KHZ (Adjustable automatically)

 Capacity

 25-35PCS/MIN

 Machine Type

 Plastic welding

 Material Application

 ABS/PP

 Welding Area

 Diameter350mm

 Dimensions

 1000*1000*1850MM

 Net Weight

 600Kg


The above parameters and configuration is for reference only, specific configuration by mutual agreement shall prevail
