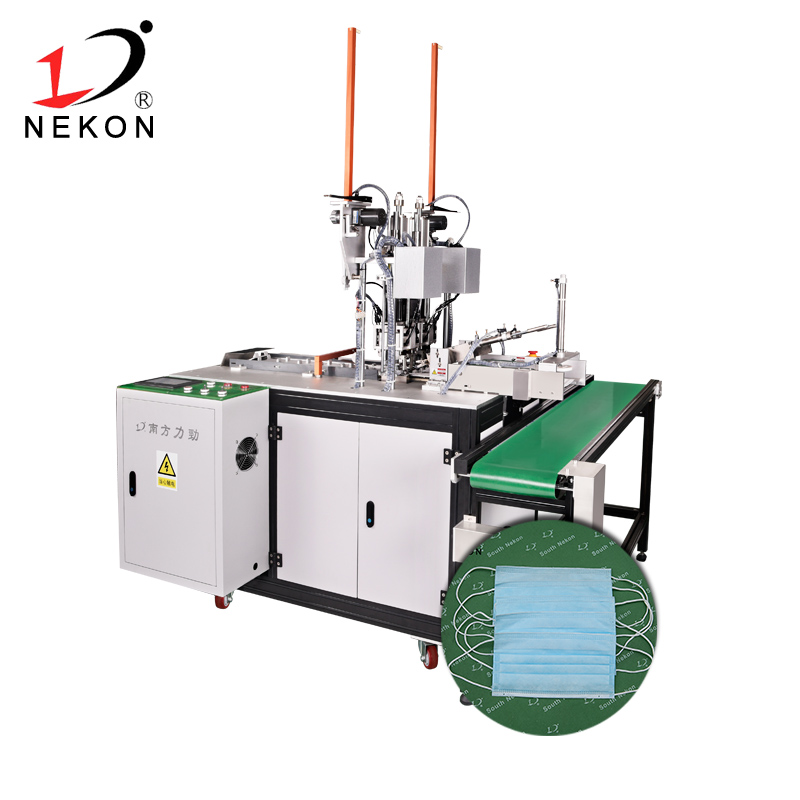

Outside Ear-loop Welding Machine(NK-UMM03)

Outside Ear-loop Welding Machine(NK-UMM03)

Product Discription:
Uses ultrasonic to weld the elastic band to two out sides of the mask blanks, need only one opetrator to put the mask blanks onto the fixtures, more output than ordinary outsside ear-loop welding machine.
Product Feature:
Aluminium alloy frame and compact design,high stability and low error rate, with beautiful appearance.



Company:

Certification:

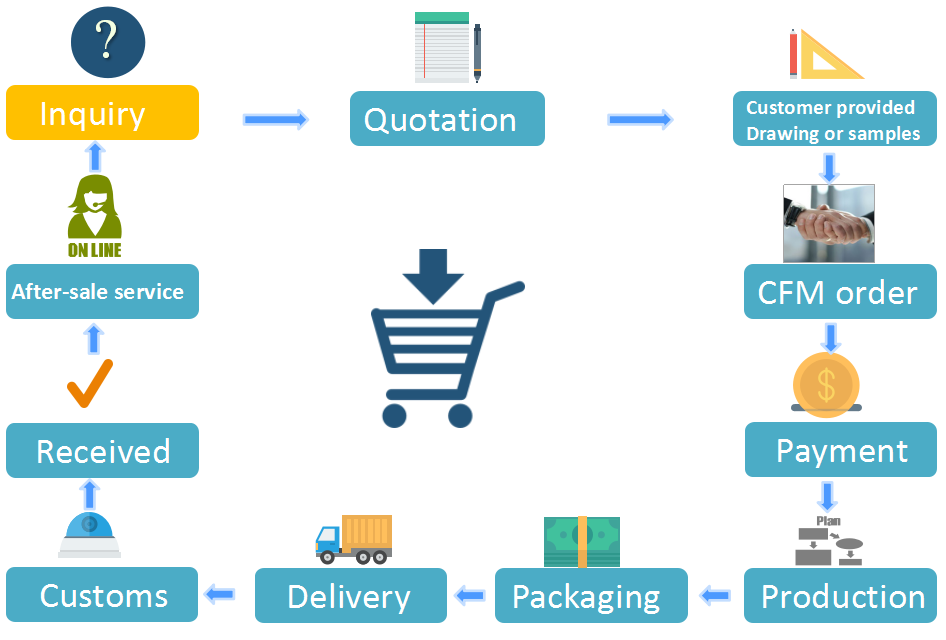

Service:

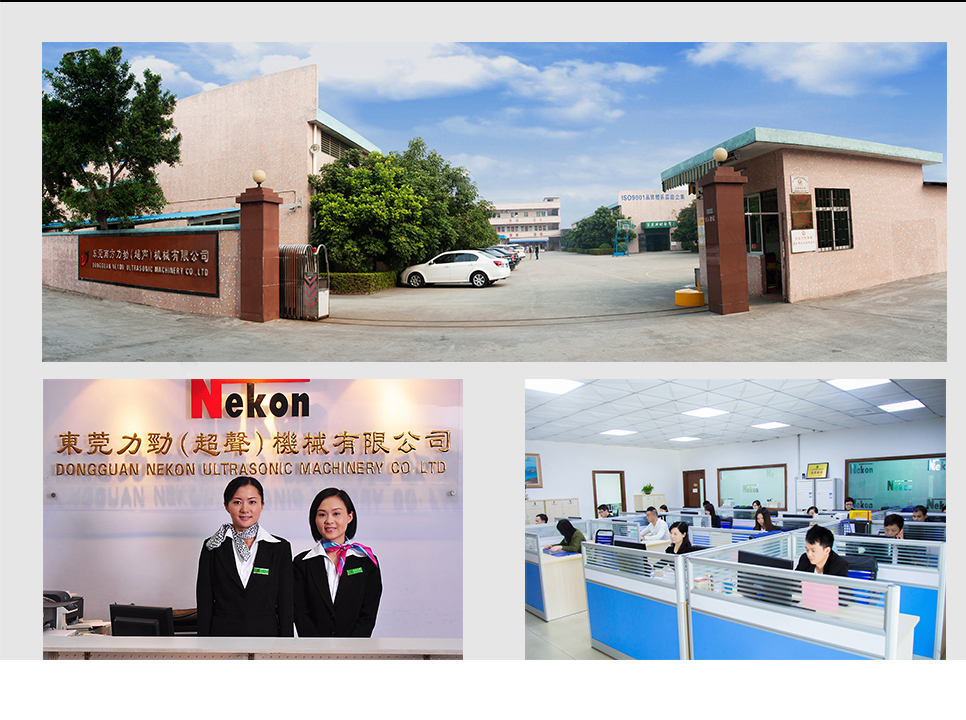

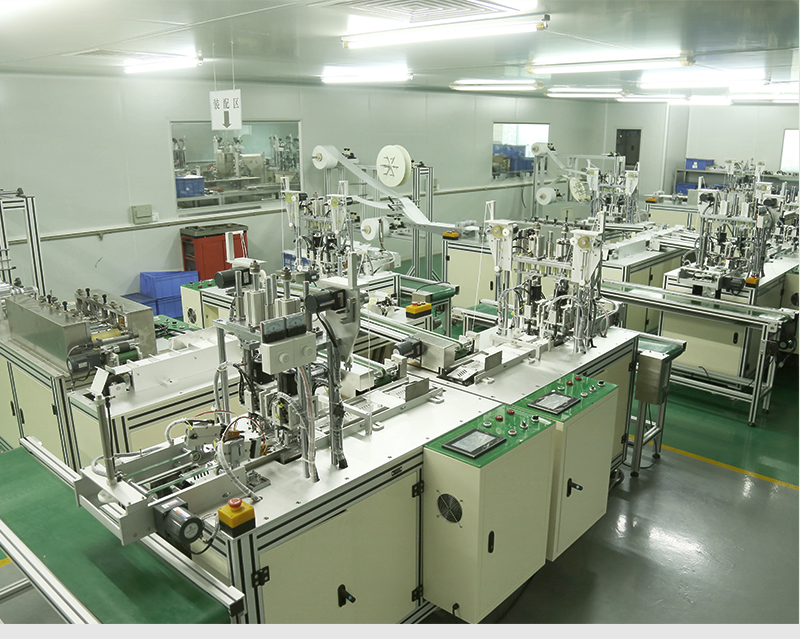

DG SOUTH NEKON CO., LTD was founded in 1997, located in the beautiful Shipai Town in Dongguan City, Guangdong Province. South Nekon is a high technical private enterprise owing independent import-export operation rights. Since the establishment, the company has been devoted to optimization and integration of developing, producing, selling, and applicating of technology of ultrasonic machinery (Ultrasonic rhinestone fixing machine,face mask making machine, ultrasonic ribbon cutting machine, ultrasonic lace sewing machine, ultrasonic plastic welding machines, high frequency fusing machine). more than 10 years of experience in automation technology,South Nekon can provide full automation non-standard fabric sewing and cutting equipment according to the specail request. The company established its own brand “nekon”, and the registered trademark is "nekon", we have more than 200 workers(more than 80 technicians and managers with college education). And the head company has an area of more than 10,000 ㎡with branch company around the main cities of China such as Wenzhou, Kunshan, Ningbo, Fujian, Zhongshan, Guangzhou, Foshan etc.

 Model

 NK-UMM03

 Driving Motion

 Servo motor & synchronous belt

 Electric Control

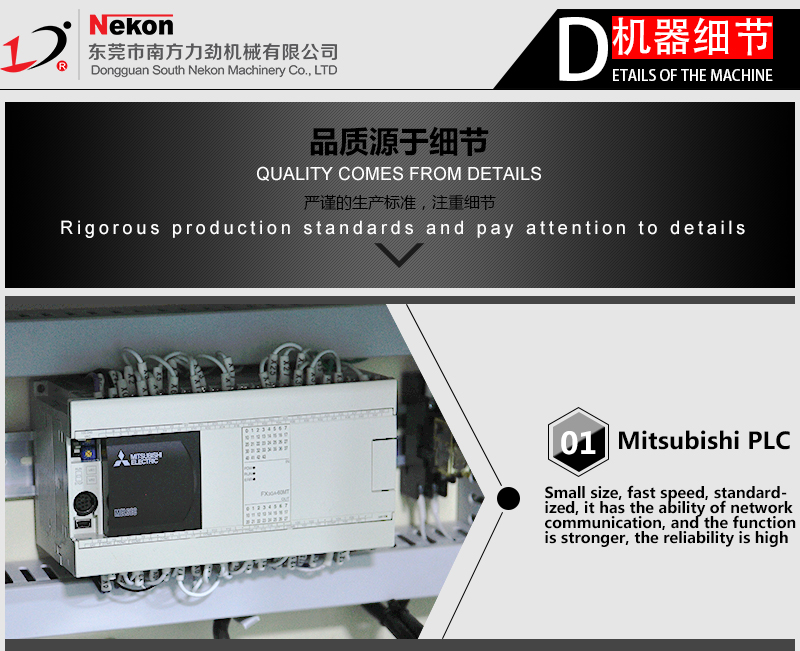

 Mitsubishi PLC

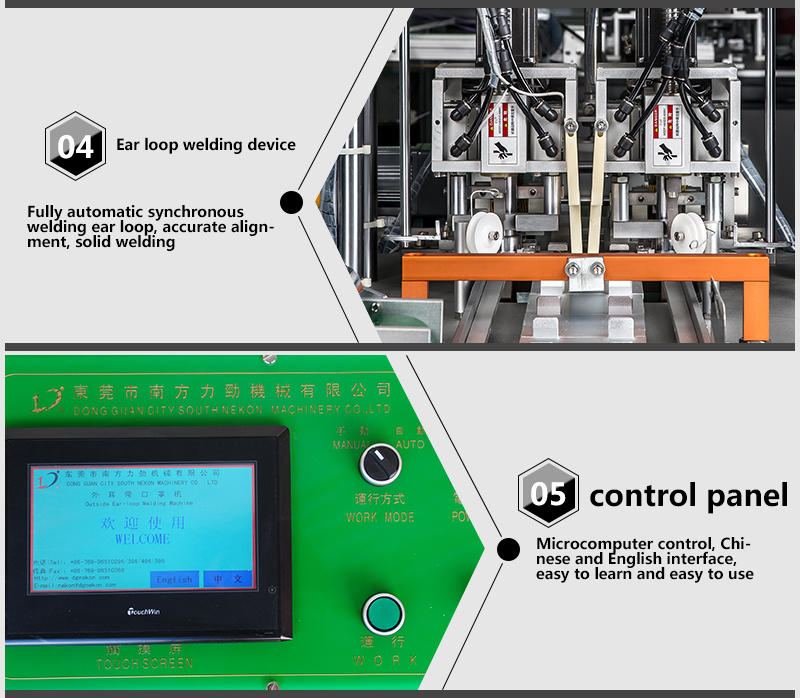

 Control Panel

 Human-computer interface(Touch screen)

 Supply Voltage

 220VAC,50/60HZ,1Phase

 Power

 4KW

 Air Pressure

 0.4-0.6Mpa

 Ultrasonic Frequency

 20KHZ

 Capacity

 60-80PCS/MIN

 Dimensions

 1900*950*1750MM

 Mask Size

 175*95MM(Customized)

 Material Application

 Terylene earloop

 Mask Layer

 2-5 layers


The above parameters and configuration is for reference only, specific configuration by mutual agreement shall prevail
----------------------------------------------------------------------------------------------
